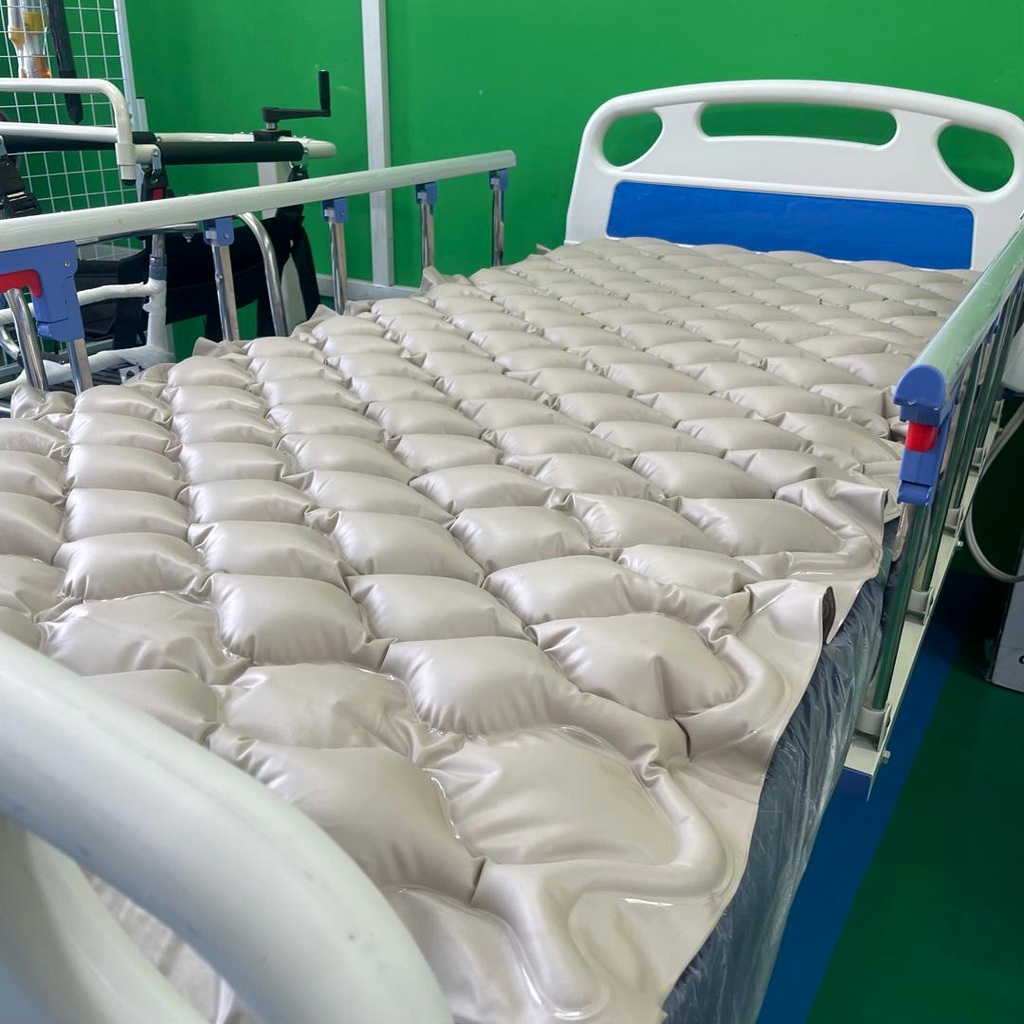

Bubble Ripple Mattress

An air mattress with 130 bubble cells and a quiet pump that inflates and deflates them in turns (alternating pressure). Helps reduce pressure on the body for patients who lie in bed for long hours.

Place it on top of the hospital bed or any flat surface.

It does not replace regular turning and skin care. Follow your doctor’s or nurse’s advice.

Specifications

• Max patient weight: 130kg
• Mattress size: 2000 (L) x 900 (W) x 70 (H) mm
• 130 bubble cells
• Material: Medical-grade PVC, 0.32mm thick
• Colour: Beige
• Pump: 220V / 50Hz, 6.5 L/min air output
• Pressure: 13 kPa
• Alternating cycle: every 10 minutes
• Quiet pump: 45dB or below
• Power consumption: 20VA or below
• Can run 24 hours or more
• MDA registered medical device

How to set up

1. Unroll the mattress on the bed or a flat surface.
2. Hang the pump at the foot end of the bed using the hooks.
3. Connect the air tubes to the pump, matching each tube to the correct outlet.
4. Plug in the pump and switch it on.
5. Wait until the mattress is fully inflated before the patient lies on it.
6. Adjust the pressure according to the patient’s weight.

Also known as: tilam angin, bubble mattress, air mattress, ripple mattress, alternating pressure mattress, tilam angin katil hospital, anti-bedsore mattress, anti-decubitus mattress.

Warranty

1-year warranty on the air pump against manufacturer defects.
